ANSYS Fluid Dynamics Verification Manual

Fluent验证部分内容总算是完成了，虽然做得有点糙，不过我觉得各位还是能大概可以参考着看的，既然过程可能写的简单了，就像别人说的是在“耍流氓”，那就更粗暴直接一点吧，在这里分享一下所有ANSYS的验证算例，这个是官方制作的内容，不仅包括Fluent，还包括CFX和AIM的验证模型，我想其他公众号发的内容也是参考这个吧。

我之前写的链接都汇总在下面，方便大家查看。

好了，废话少说，大家关心的案例下载地址在文末，欢迎自取。

算例目录

01.VMFL001: Flow Between Rotating and Stationary Concentric Cylinders

02.VMFL002: Laminar Flow Through a Pipe with Uniform Heat Flux

03.VMFL003: Pressure Drop in Turbulent Flow Through a Pipe

04.VMFL004: Plain Couette Flow with Pressure Gradient

05.VMFL005: Poiseuille Flow in a Pipe

06.VMFL006: Multicomponent Species Transport in Pipe Flow

07.VMFL007: Non-Newtonian Flow in a Pipe

08.VMFL008: Flow Inside a Rotating Cavity

09.VMFL009: Natural Convection in a Concentric Annulus

10.VMFL010: Laminar Flow in a 90° Tee-Junction

11.VMFL011: Laminar Flow in a Triangular Cavity

12. VMFL012:Turbulent Flow in a Wavy Channel

13.VMFL013: Turbulent Flow with Heat Transfer in a Backward-Facing Step

14.VMFL014: Species Mixing in Co-axial Turbulent Jets

15.VMFL015: Flow Through an Engine Inlet Valve

16.VMFL016: Turbulent Flow in a Transition Duct

17.VMFL017: Transonic Flow over an RAE 2822 Airfoil

18.VMFL018: Shock Reflection in Supersonic Flow

19.VMFL019: Transient Flow Near a Wall Set in Motion

20.VMFL020: Adiabatic Compression of Air in Cylinder by a Reciprocating Piston

21.VMFL021: Cavitation Over a Sharp-Edged Orifice Case A: High Inlet Pressure

22.VMFL022: Cavitation Over a Sharp-Edged Orifice Case B: Low Inlet Pressure

23.VMFL023: Oscillating Laminar Flow Around a Circular Cylinder

24.VMFL024: Interface of Two Immiscible Liquids in a Rotating Cylinder

25.VMFL025: Turbulent Non-Premixed Methane Combustion with Swirling Air

26.VMFL026: Supersonic Flow with Real Gas Effects inside a Shock Tube

27.VMFL027: Turbulent Flow Over a Backward-Facing Step

28.VMFL028: Turbulent Heat Transfer in a Pipe Expansion

29.VMFL029: Anisotropic Conduction Heat Transfer

30.VMFL030: Turbulent Flow in a 90° Pipe-Bend

31.VMFL031: Turbulent Flow Behind an Open-Slit V Gutter

32.VMFL032: Turbulent Flow with Separation Along an Axisymmetric Afterbody

33.VMFL033: Viscous Heating in an Annulus

34.VMFL034: Particle Aggregation inside a Turbulent Stirred Tank

35.VMFL035: 3-Dimensional Single-Stage Axial Compressor

37.VMFL037: Turbulent Flow Over a Forward Facing Step

38.VMFL038: Falling Film Over an Inclined Plane

39.VMFL039: Boiling in a Pipe with Heated Wall

40.VMFL040: Separated Turbulent Flow in a Diffuser

41.VMFL041: Transonic Flow Over an Airfoil

42.VMFL042: Turbulent Mixing of Two Streams with Different Densities

43.VMFL043: Laminar to Turbulent Transition of Boundary Layer over a Flat Plate

44.VMFL044: Supersonic Nozzle Flow

45.VMFL045: Oblique Shock Over an Inclined Ramp

46.VMFL046: Supersonic Flow with Normal Shock in a Converging Diverging Nozzle

47.VMFL047: Turbulent Flow with Separation in an Asymmetric Diffuser

48.VMFL048: Turbulent flow in a 180° Pipe Bend

49.VMFL049: Combustion in an Axisymmetric Natural Gas Furnace

50.VMFL050: Transient Heat Conduction in a Semi-Infinite Slab

51.VMFL051: Isentropic Expansion of Supersonic Flow Over a Convex Corner

52.VMFL052: Turbulent Natural Convection Inside a Tall Cavity

53.VMFL053: Compressible Turbulent Mixing Layer

38.VMFL054: Laminar flow in a Trapezoidal Cavity

55.VMFL055: Transitional Recirculatory Flow inside a Ventilation Enclosure

56.VMFL056: Combined Conduction and Radiation in a Square Cavity

57.VMFL057: Radiation and Conduction in Composite Solid Layers

58.VMFL058: Turbulent Flow in an Axisymmetric Diffuser

59.VMFL059: Conduction in a Composite Solid Block

60.VMFL060: Transitional Supersonic Flow Over a Rearward Facing Step

61.VMFL061: Surface to Surface Radiative Heat Transfer Between Two Concentric Cylinders

62.VMFL062: Fully Developed Turbulent Flow Over a “Hill”

63.VMFL063: Separated Laminar Flow Over a Blunt Plate

64.VMFL064: Low Reynolds Number Flow in a Channel with Sudden Asymmetric Expansion

65.VMFL065: Swirling Turbulent Flow Inside a Diffuser

66.VMFL066: Radiative Heat Transfer in a Rectangular Enclosure with Participating Medium

67.VMFL067: Boiling in a Pipe-Critical Heat Flux

68.VMFL068: Axial Flow in an Eccentric Annulus

69.VMFL069:Two Phase Poiseulle Flow

70.VMFL070: Radiation Between Two Parallel Surfaces

案例中涉及的物理模型说明

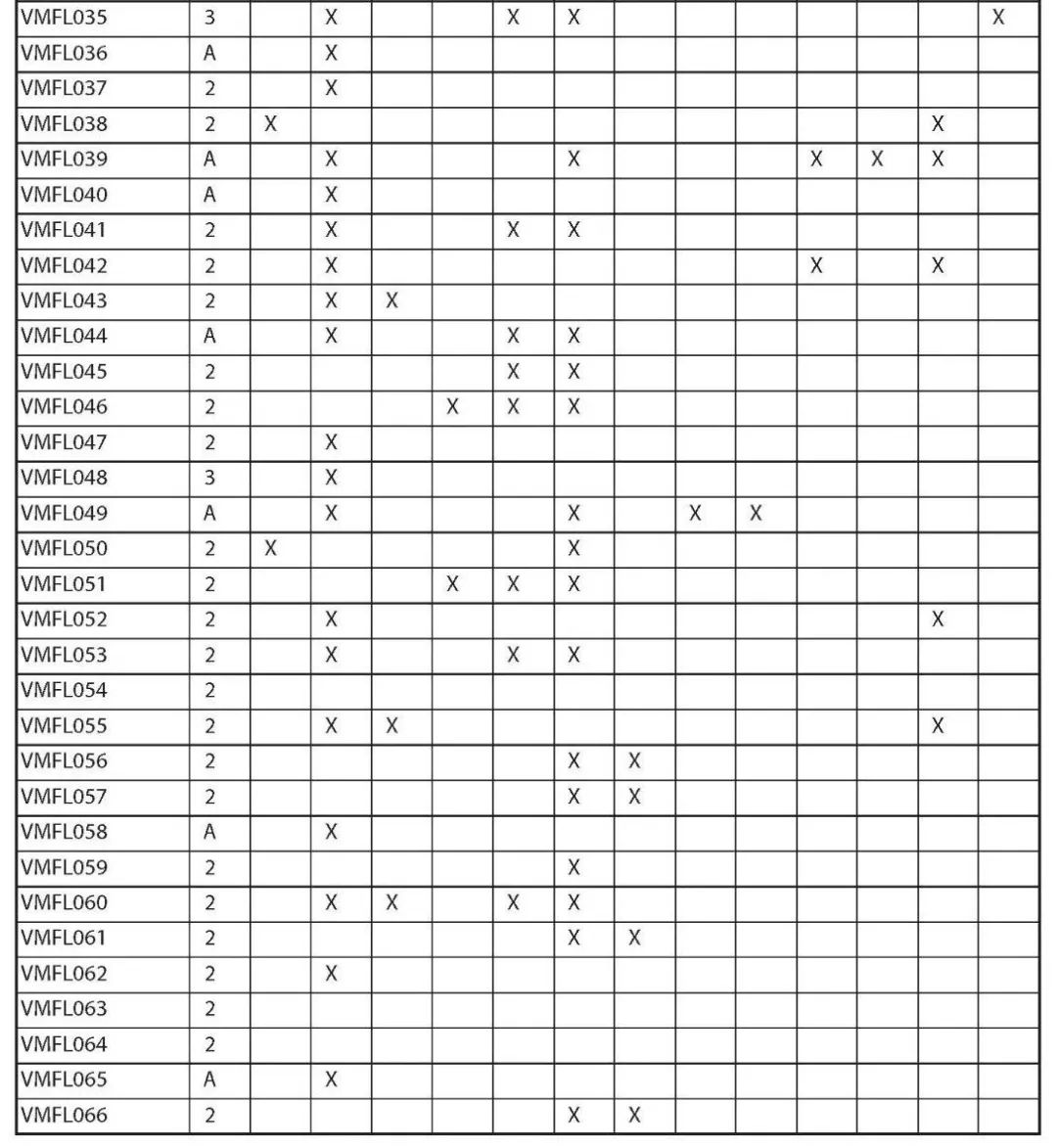

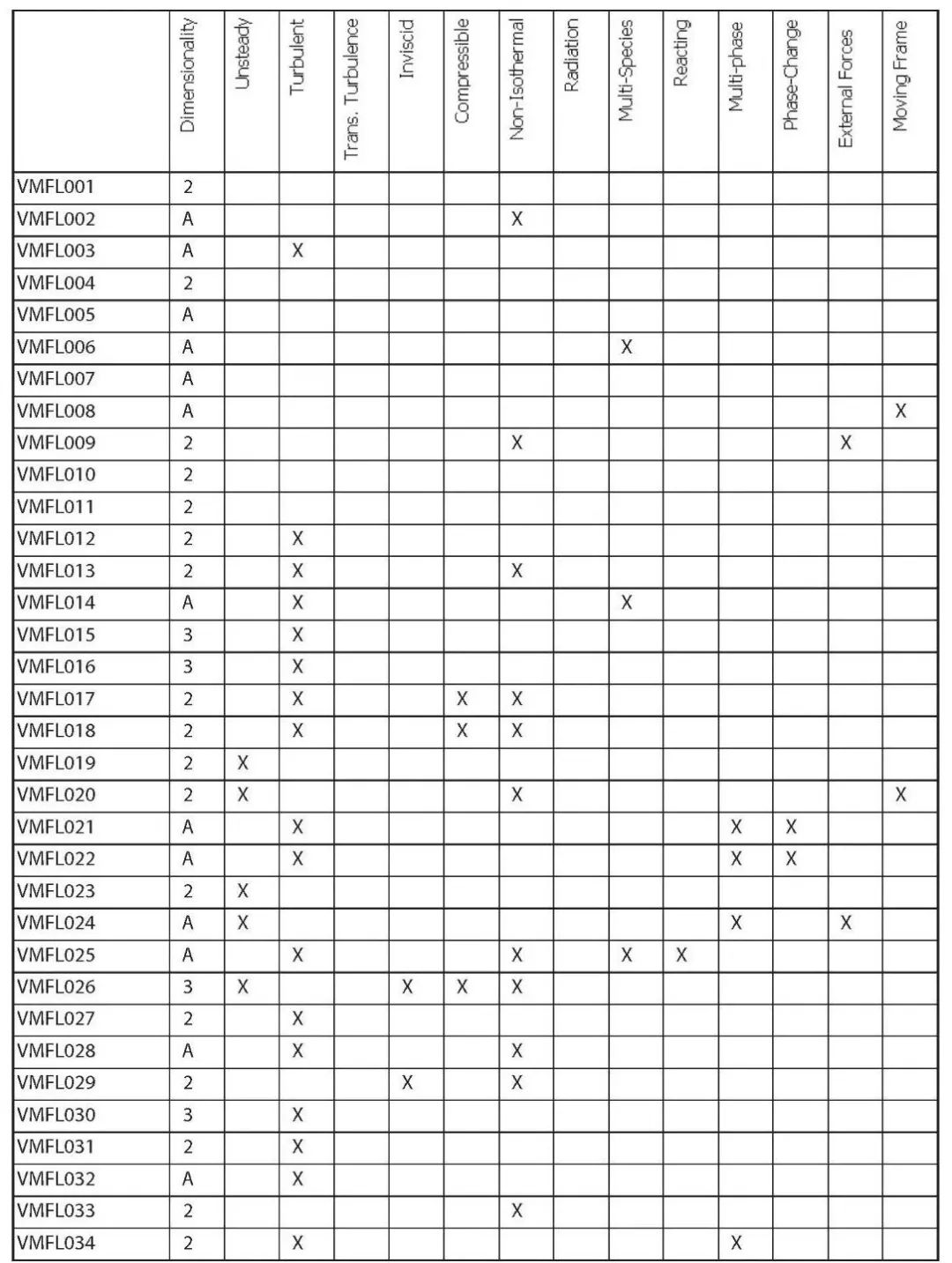

表中代码说明

• 2: 2D

• 3: 3D

• A: 2D Axisymmetric

案例下载地址： https://pan.baidu.com/s/1amDkrdRujotL2BVHQcCcoA

密码: xihp
